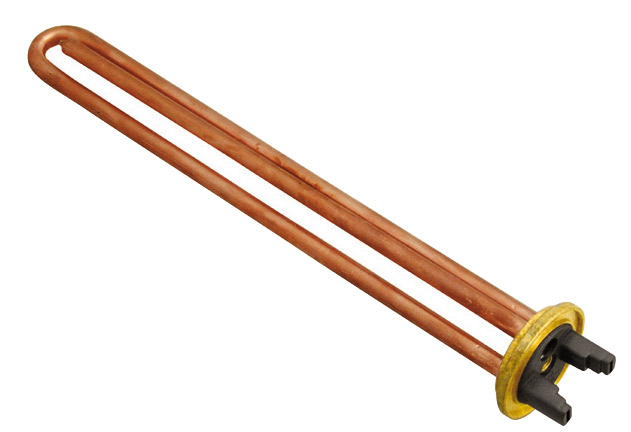

Straight Flange Heating Elements









WE417

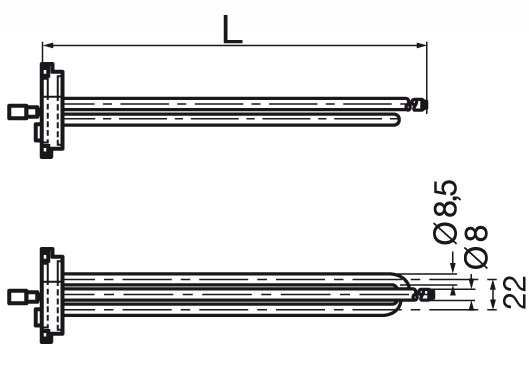

Volt: 220 single-phase, Watt: from 1000 to 3000 (see table) Connection Flange ø 48, Flange: Brass CW617N, copper resistance pipe: 8.5 mm, electric connection: Faston, surface charging fi eld: On request with thermostat probe door: L = 275 mm copper, bottom of scale 70-80°C single and double safety device in compliance with Standard EN 60730-I ( with other values on request) On request with magnesium anode socket.

COD. Connessione L L1 Watt
WE417 ø 48 mm 270 - 1000
WE418 ø 48 mm 270 - 1200
WE419 ø 48 mm 270 - 1500
WE420 ø 48 mm 270 - 2000










Electric resistances
